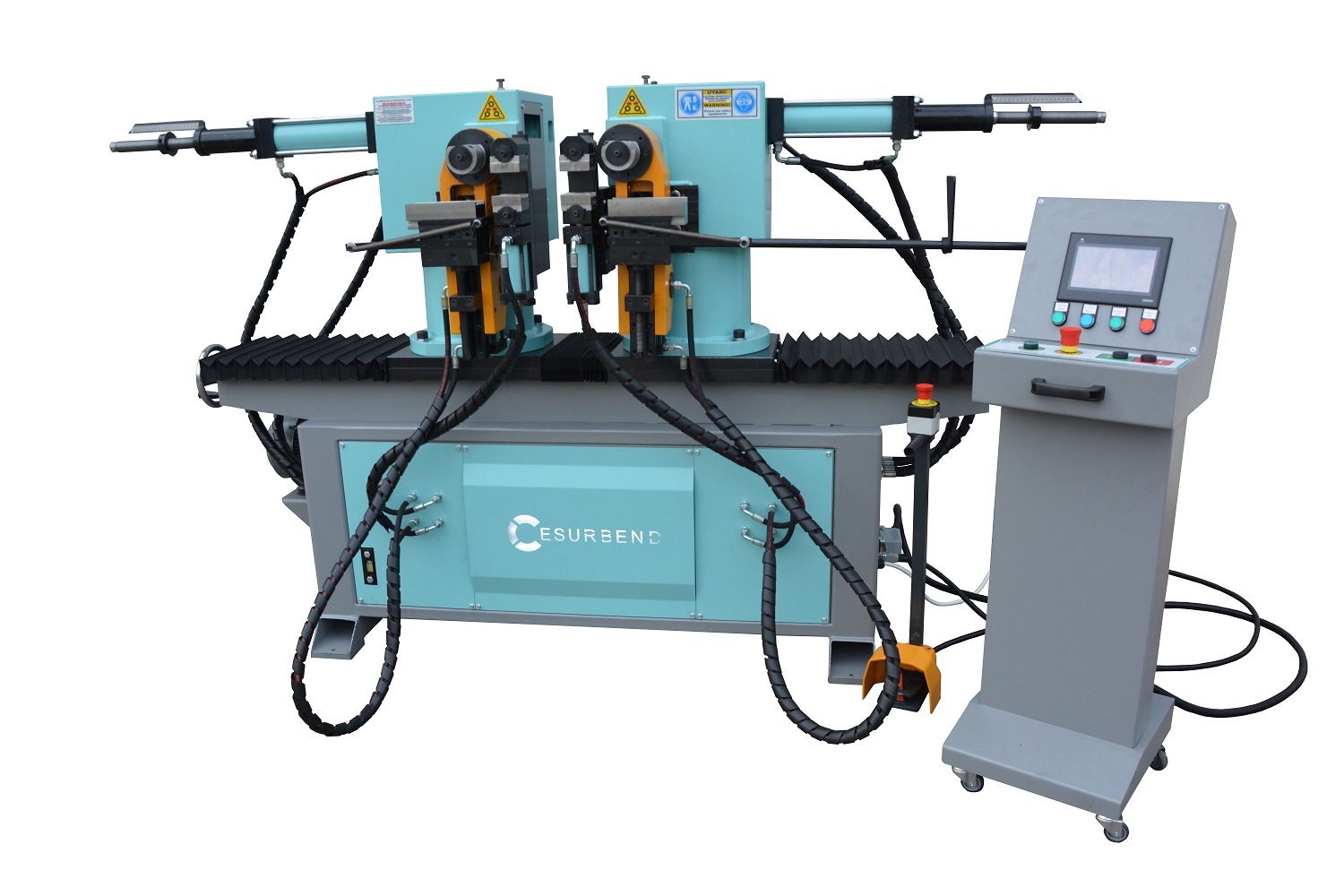

PB-38 DH Double Head Pipe & Tube Bending Machine

Ask Us For More Information

Contact Us

Download Our Machine Brochure

Download
slide 1
slide 1
slide 1
  • Product Features :

  •
    -Manual,semi-automatic and fully automatic operation functions are available
    -The cooling system makes the machine running steady
    -The quick tooling change system is favor of production
    -The oil way used loop circuit for machine control precisely
    -High stability (the bending angle controlled by machine)
    -Rotating bending ability(0°-90°)
    -NC Control System
    -Full hydraulic
    -Pedal control
    -Automatic energy-saving mode
    -Strut tie bar
    -Working in automatic and manual mode
    -Depending on the pipe diameter, dies can be double or triple.



Technical Information
  • Model
  • PB-38 DH Double Head Pipe & Tube Bending Machine
  • Max. Bending Capacity (Ø)
  • 38x3
  • Max. Bending Radius (mm)
  • 220
  • Bending Degree (°)
  • 0-90
  • Shaft Diameter (mm)
  • 40
  • Tightening Opening Distance (mm)
  • 50
  • Pressure On Distance (mm)
  • 50
  • Max.Bending Angle (°)
  • 95
  • Min.-Max. Bending Distance (mm)
  • 180-1500
  • Working Height (mm)
  • 1350
  • Engine Power (kW)
  • 5.5
  • Machine Width (mm)
  • 1000
  • Machine Length (mm)
  • 3600
  • Machine Height (mm)
  • 1600
  • Machine Weight (kg)
  • 1800
